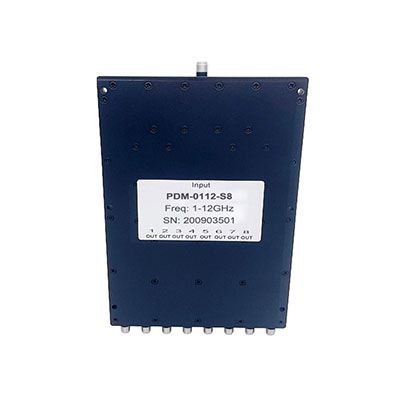

Generic photo used for illustration purposes only.

8 Way SMA Power Divider 1-12 GHz

P/N:PDM-0112-S8
  • Frequency Min:1 GHz
  • Frequency Max:12 GHz
  • Insertion Loss Max:3.2 dB
  • Input VSWR Max:1.6
  • Output VSWR Max:1.3
  • Isolation Min:18 dB
  • Amplitude Balance Max:±0.4 dB
  • Phase Balance Max:±6°
  • Input Power Max:20 W
  • Connector:SMA
  • Description
    PDM-0112-S8 is a 8 way power divider/combiner that covers the frequency range of 1-12 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
