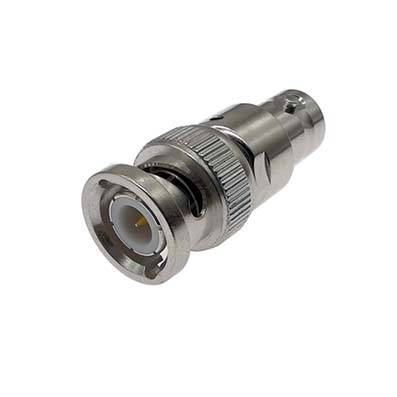

Generic photo used for illustration purposes only.

BNC Attenuator 4 GHz 2 Watts

P/N:RFHB04XXBC2
  • Average Power:2 W
  • Frequency Max:4 GHz
  • Connector:BNC
  • VSWR Max:1.2
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):35(L)*14.5(φ)
  • Description
    RFHB04XXBC2 from RF ONE is BNC coaxial fixed attenuator operating DC to 4 GHz and rated for 2 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB04XXBC2, replace the XX with the desired attenuation value. Example: RFHB0430BC2 for 30 dB.
