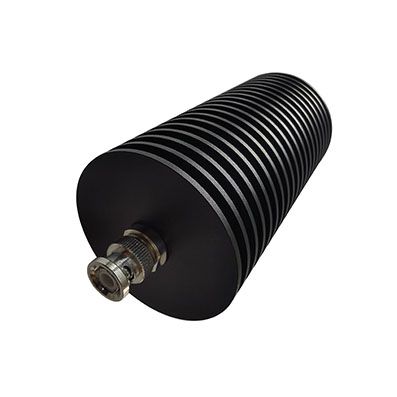

BNC Attenuator 6 GHz 100 Watts Unidirectional

P/N:RFH06XXBD100
  • Average Power:100 W
  • Frequency Max:6 GHz
  • Connector:BNC
  • VSWR Max:1.25
  • Attenuations:6-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):121(L)*64(φ)
  • Description
    RFH06XXBD100 from RF ONE is BNC coaxial fixed attenuator operating DC to 6 GHz and rated for 100 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH06XXBD100, replace the XX with the desired attenuation value. Example: RFH0630BD100 for 30 dB.
