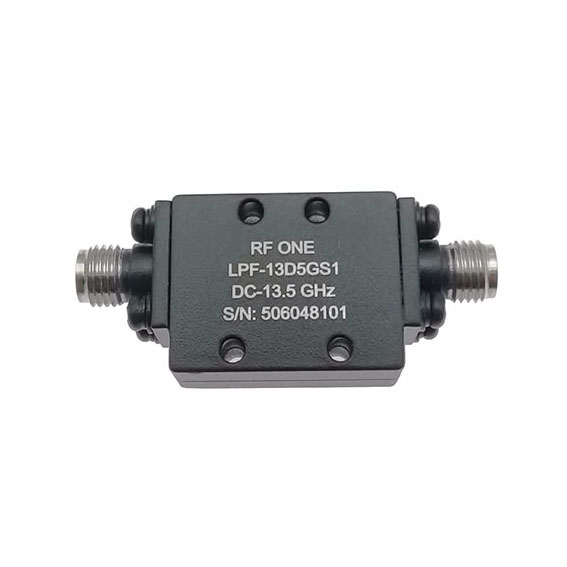

Generic photo used for illustration purposes only.

DC-13.5 GHz SMA Low Pass Filter

P/N:LPF-13D5GS1
  • Passband Frequency:DC-13.5 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.5
  • Reject Frequency:14.7-21.3 GHz
  • Rejection Min:50 dB
  • Power Input Max:15 W
  • Connector:SMA
