DC-8 GHz SMA Low Pass Filter
DC-8 GHz SMA Low Pass Filter DC-8 GHz SMA Low Pass Filter DC-8 GHz SMA Low Pass Filter
  • DC-8 GHz SMA Low Pass Filter

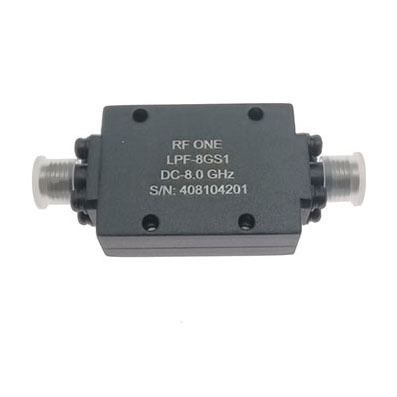

Generic photo used for illustration purposes only.

DC-8 GHz SMA Low Pass Filter

P/N:LPF-8GS1
  • Passband Frequency:DC-8.0 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.4
  • Reject Frequency:8.8-16.2 GHz
  • Rejection Min:50 dB
  • Power Input Max:15 W
  • Connector:SMA

    • Datasheet
