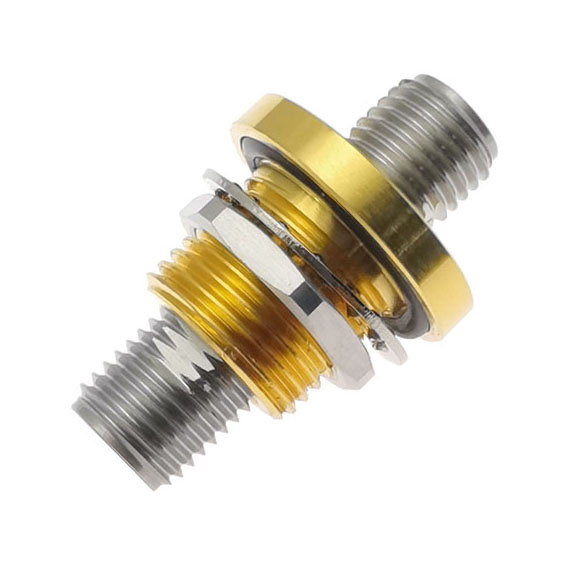

Generic photo used for illustration purposes only.

Hermetically Sealed 2.92mm Female to 2.92mm Female Bulkhead Adapter

P/N:AHS-KFKF-1
  • Connection Type:In Series
  • Frequency Max:40 GHz
  • Connector 1:2.92mm Female
  • Connector 2:2.92mm Female
  • Body Style:Bulkhead Hermetically
  • VSWR Max:1.3
  • Description
    AHS-KFKF-1 from RF ONE is a hermetically sealed 2.92mm female to 2.92mm female bulkhead adapter operating to 40 GHz. Built from Kovar and glass bead, these feedthrough adapters feature a leak rate less than 1 x 10-8 cc/sec of helium and ingress protection IP68, making it ideal for TVAC or vacuum applications.
