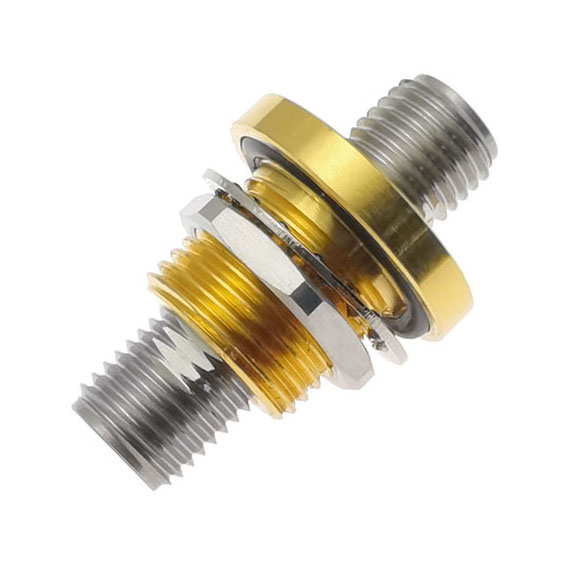

Generic photo used for illustration purposes only.

Hermetically Sealed 1.85mm Female to 1.85mm Female Bulkhead Adapter

P/N:AHS-VFVF-1
  • Connection Type:In Series
  • Frequency Max:67 GHz
  • Connector 1:1.85mm Female
  • Connector 2:1.85mm Female
  • Body Style:Bulkhead Hermetically
  • VSWR Max:1.5
  • Description
    AHS-VFVF-1 from RF ONE is a hermetically sealed 1.85mm female to 1.85mm female bulkhead adapter operating to 67 GHz. Built from Kovar and glass bead, these feedthrough adapters feature a leak rate less than 1 x 10-8 cc/sec of helium and ingress protection IP68, making it ideal for TVAC or vacuum applications.
