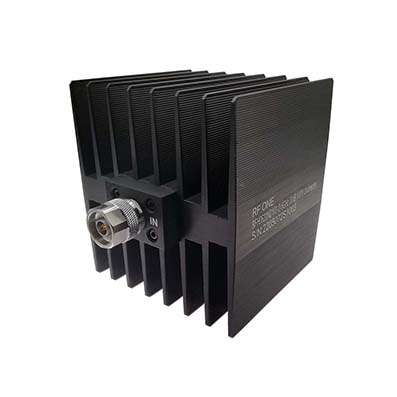

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 100 Watts Bidirectional

P/N:RFHB12XXNC100-D
  • Average Power:100 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Bidirectional
  • Dimensions (mm):152*110*120
  • Description
    RFHB12XXNC100-D from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 100 Watts, bidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFHB12XXNC100-D, replace the XX with the desired attenuation value. Example: RFHB1230NC100-D for 30 dB.
