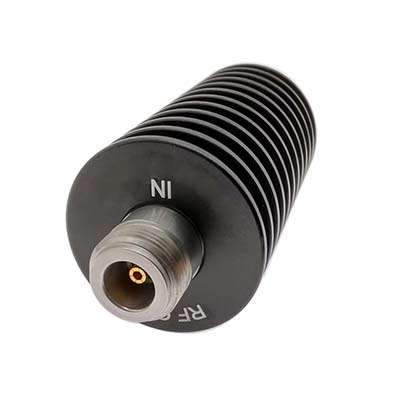

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 25 Watts

P/N:RFHB12XXNA25-A
  • Average Power:25 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:1-50 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):54(L)*44(φ)
  • Description
    RFHB12XXNA25-A from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 25 Watts, bidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFHB12XXNA25-A, replace the XX with the desired attenuation value. Example: RFHB1230NA25-A for 30 dB.
