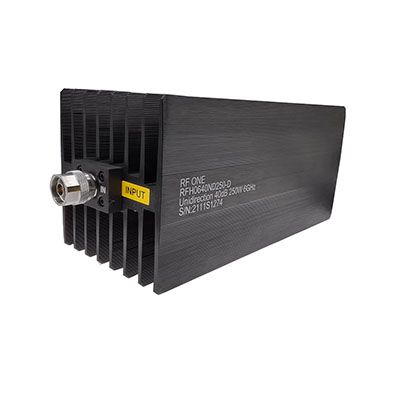

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 250 Watts Unidirectional

P/N:RFH12XXND250-D
  • Average Power:250 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):254*110*120
  • Description
    RFH12XXND250-D from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 250 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH12XXND250-D, replace the XX with the desired attenuation value. Example: RFH1230ND250-D for 30 dB.
