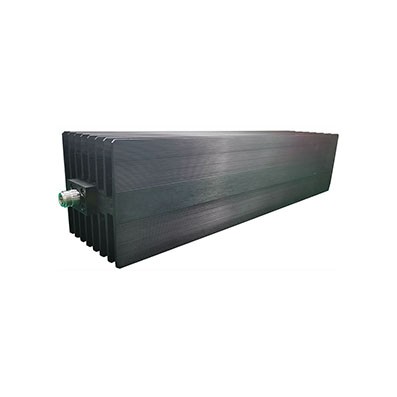

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 300 Watts Bidirectional

P/N:RFHB12XXNA300-D
  • Average Power:300 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:10-60 dB
  • Shape:Rectangular
  • Direction:Bidirectional
  • Dimensions (mm):509*110*120
  • Description
    RFHB12XXNA300-D from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 300 Watts, bidirectional. Available from 10 to 60 dB. RoHS Compliant.

    For model RFHB12XXNA300-D, replace the XX with the desired attenuation value. Example: RFHB1230NA300-D for 30 dB.
