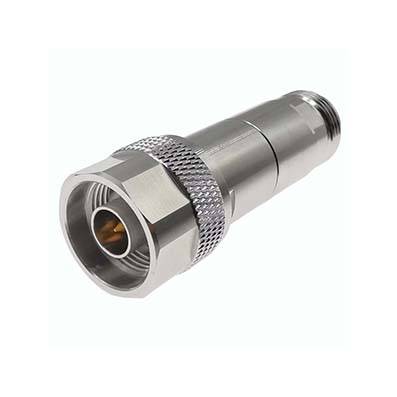

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 5 Watts

P/N:RFHB12XXNC5
  • Average Power:5 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.3
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):58(L)*19(φ)
  • Description
    RFHB12XXNC5 from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 5 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB12XXNC5, replace the XX with the desired attenuation value. Example: RFHB1230NC5 for 30 dB.
