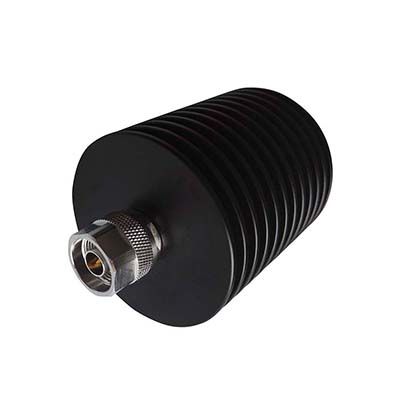

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 50 Watts Bidirectional

P/N:RFHB12XXNC50-A
  • Average Power:50 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:1-50 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):70(L)*64(φ)
  • Description
    RFHB12XXNC50-A from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 50 Watts, bidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFHB12XXNC50-A, replace the XX with the desired attenuation value. Example: RFHB1230NC50-A for 30 dB.
