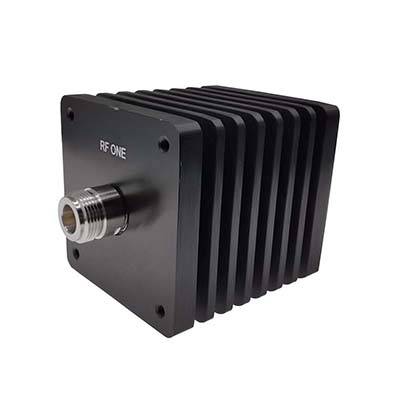

Generic photo used for illustration purposes only.

N Attenuator 12.4 GHz 50 Watts Unidirectional

P/N:RFH12XXND50-S
  • Average Power:50 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:1-50 dB
  • Shape:Square
  • Direction:Unidirectional
  • Dimensions (mm):70*64*64
  • Description
    RFH12XXND50-S from RF ONE is N type coaxial fixed attenuator operating DC to 12.4 GHz and rated for 50 Watts, unidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFH12XXND50-S, replace the XX with the desired attenuation value. Example: RFH1230ND50-S for 30 dB.
