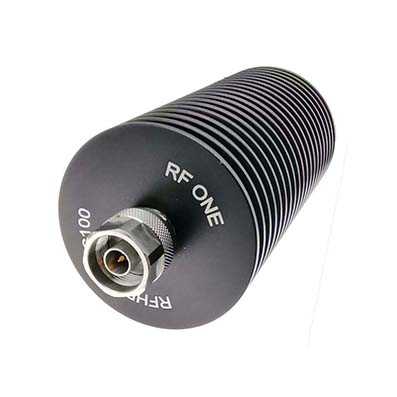

Generic photo used for illustration purposes only.

N Attenuator 18 GHz 100 Watts Unidirectional

P/N:RFH18XXND100
  • Average Power:100 W
  • Frequency Max:18 GHz
  • Connector:N
  • VSWR Max:1.45
  • Attenuations:6-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):121(L)*64(φ)
  • Description
    RFH18XXND100 from RF ONE is N type coaxial fixed attenuator operating DC to 18 GHz and rated for 100 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH18XXND100, replace the XX with the desired attenuation value. Example: RFH1830ND100 for 30 dB.
