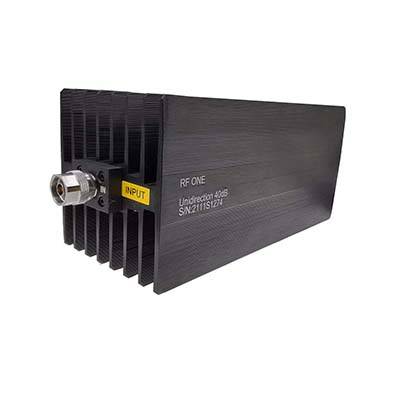

Generic photo used for illustration purposes only.

N Attenuator 18 GHz 350 Watts Unidirectional

P/N:RFH18XXND350-D
  • Average Power:350 W
  • Frequency Max:18 GHz
  • Connector:N
  • VSWR Max:1.45
  • Attenuations:20-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):407*110*120
  • Description
    RFH18XXND350-D from RF ONE is N type coaxial fixed attenuator operating DC to 18 GHz and rated for 350 Watts, unidirectional. Available from 20 to 60 dB. RoHS Compliant.

    For model RFH18XXND350-D, replace the XX with the desired attenuation value. Example: RFH1830ND350-D for 30 dB.
