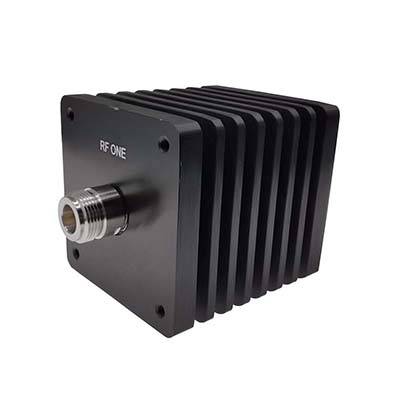

Generic photo used for illustration purposes only.

N Attenuator 18 GHz 75 Watts Bidirectional

P/N:RFHB18XXNC75-S
  • Average Power:75 W
  • Frequency Max:18 GHz
  • Connector:N
  • VSWR Max:1.45
  • Attenuations:6-60 dB
  • Shape:Square
  • Direction:Bidirectional
  • Dimensions (mm):105*64*64
  • Description
    RFHB18XXNC75-S from RF ONE is N type coaxial fixed attenuator operating DC to 18 GHz and rated for 75 Watts, bidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFHB18XXNC75-S, replace the XX with the desired attenuation value. Example: RFHB1830NC75-S for 30 dB.
