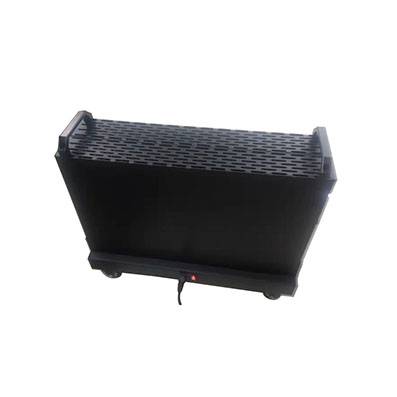

Generic photo used for illustration purposes only.

N Attenuator 3 GHz 1000 Watts Unidirectional

P/N:RFH03XXNA1000
  • Average Power:1000 W
  • Frequency Max:3 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:20-50 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):486*220*508
  • Description
    RFH03XXNA1000 from RF ONE is N type coaxial fixed attenuator operating DC to 3 GHz and rated for 1000 Watts, unidirectional. Available from 20 to 50 dB. RoHS Compliant.

    For model RFH03XXNA1000, replace the XX with the desired attenuation value. Example: RFH0330NA1000 for 30 dB.
