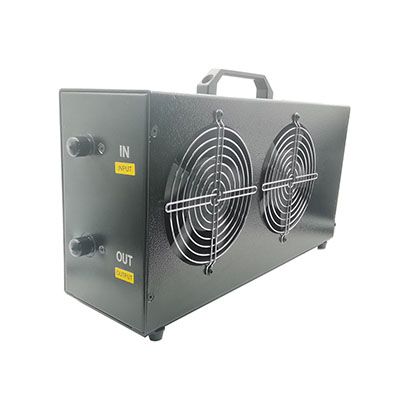

Generic photo used for illustration purposes only.

N Attenuator 4 GHz 600 Watts Forced Air Cooled

P/N:RFH04XXND600-F
  • Average Power:600 W
  • Frequency Max:4 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:10-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):435*220*130
  • Description
    RFH04XXND600-F from RF ONE is N type coaxial fixed attenuator operating DC to 4 GHz and rated for 600 Watts, unidirectional, forced air cooled. Available from 10 to 60 dB. RoHS Compliant.

    For model RFH04XXND600-F, replace the XX with the desired attenuation value. Example: RFH0430ND600-F for 30 dB.
