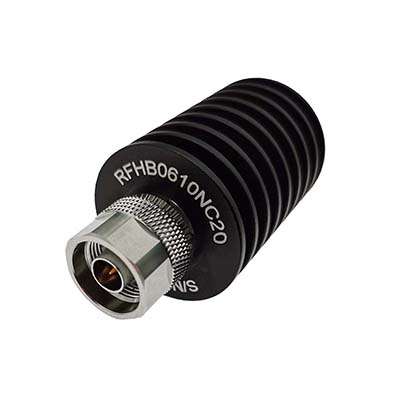

Generic photo used for illustration purposes only.

N Attenuator 6 GHz 20 Watts

P/N:RFHB06XXNC20
  • Average Power:20 W
  • Frequency Max:6 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):49.5(L)*38(φ)
  • Description
    RFHB06XXNC20 from RF ONE is N type coaxial fixed attenuator operating DC to 6 GHz and rated for 20 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB06XXNC20, replace the XX with the desired attenuation value. Example: RFHB0630NC20 for 30 dB.
