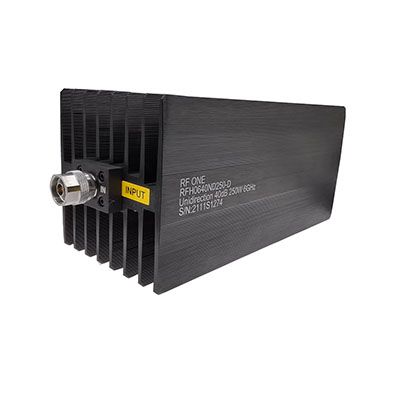

Generic photo used for illustration purposes only.

N Attenuator 6 GHz 250 Watts Unidirectional

P/N:RFH06XXND250-D
  • Average Power:250 W
  • Frequency Max:6 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:3-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):254*110*120
  • Description
    RFH06XXND250-D from RF ONE is N type coaxial fixed attenuator operating DC to 6 GHz and rated for 250 Watts, unidirectional. Available from 3 to 60 dB. RoHS Compliant.

    For model RFH06XXND250-D, replace the XX with the desired attenuation value. Example: RFH0630ND250-D for 30 dB.
