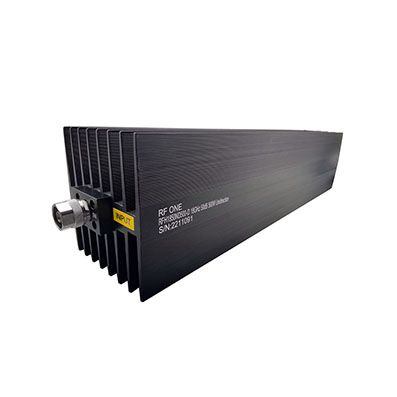

Generic photo used for illustration purposes only.

N Attenuator 6 GHz 500 Watts Unidirectional

P/N:RFH06XXND500-D
  • Average Power:500 W
  • Frequency Max:6 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:10-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):509*110*120
  • Description
    RFH06XXND500-D from RF ONE is N type coaxial fixed attenuator operating DC to 6 GHz and rated for 500 Watts, unidirectional. Available from 10 to 60 dB. RoHS Compliant.

    For model RFH06XXND500-D, replace the XX with the desired attenuation value. Example: RFH0630ND500-D for 30 dB.
