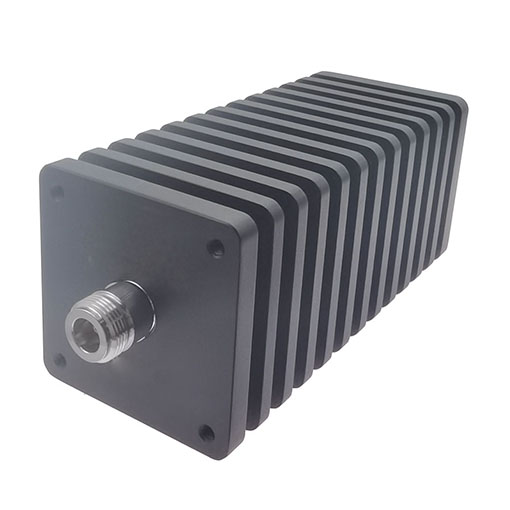

Generic photo used for illustration purposes only.

N Attenuator 8.5 GHz 150 Watts Unidirectional

P/N:RFH08XXND150-S
  • Average Power:150 W
  • Frequency Max:8.5 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):64*64*148
  • Description
    RFH08XXND150-S from RF ONE is N type coaxial fixed attenuator operating DC to 8.5 GHz and rated for 150 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH08XXND150-S, replace the XX with the desired attenuation value. Example: RFH0830ND150-S for 30 dB.
