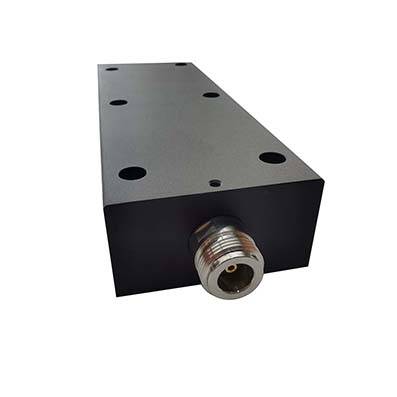

Generic photo used for illustration purposes only.

N Conduction Cooled Attenuator 12.4 GHz 150 Watts Unidirectional

P/N:RFH12XXNA150-DC
  • Average Power:150 W
  • Frequency Max:12.4 GHz
  • Connector:N
  • VSWR Max:1.35
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):135*57*38
  • Description
    RFH12XXNA150-DC from RF ONE is N type conduction cooled fixed attenuator operating DC to 12.4 GHz and rated for 150 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH12XXNA150-DC, replace the XX with the desired attenuation value. Example: RFH1230NA150-DC for 30 dB.
