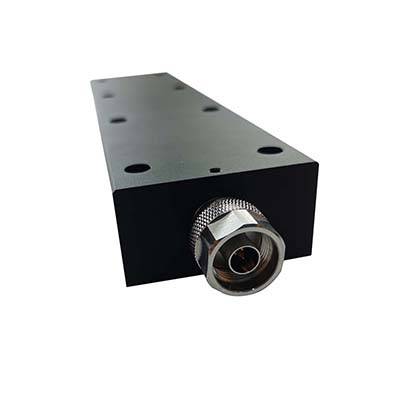

Generic photo used for illustration purposes only.

N Conduction Cooled Attenuator 4 GHz 250 Watts Unidirectional

P/N:RFH04XXND250-DC
  • Average Power:250 W
  • Frequency Max:4 GHz
  • Connector:N
  • VSWR Max:1.2
  • Attenuations:10-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):224*57*30
  • Description
    RFH04XXND250-DC from RF ONE is N type conduction cooled fixed attenuator operating DC to 4 GHz and rated for 250 Watts, unidirectional. Available from 10 to 60 dB. RoHS Compliant.

    For model RFH04XXND250-DC, replace the XX with the desired attenuation value. Example: RFH0430ND250-DC for 30 dB.
