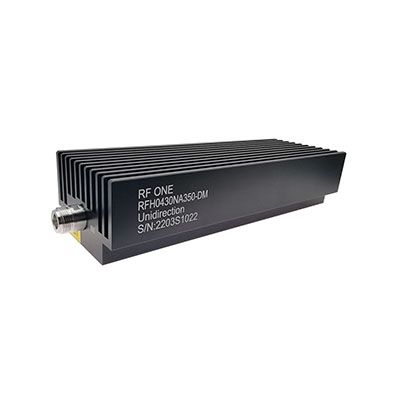

Generic photo used for illustration purposes only.

N Conduction Cooled Attenuator 6 GHz 350 Watts Unidirectional

P/N:RFH06XXNA350-DM
  • Average Power:350 W
  • Frequency Max:6 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:10-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):230*79*52
  • Description
    RFH06XXNA350-DM from RF ONE is N type conduction cooled fixed attenuator operating DC to 6 GHz and rated for 350 Watts, unidirectional. Available from 10 to 60 dB. RoHS Compliant.

    For model RFH06XXNA350-DM, replace the XX with the desired attenuation value. Example: RFH0630NA350-DM for 30 dB.
