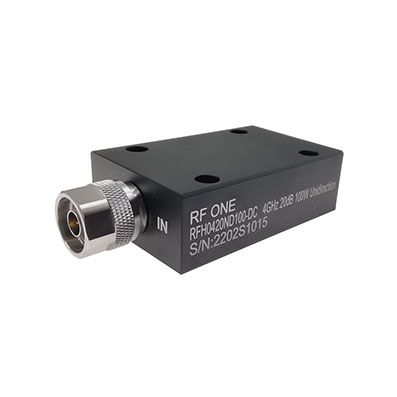

Generic photo used for illustration purposes only.

N Conduction Cooled Attenuator 8.5 GHz 100 Watts Unidirectional

P/N:RFH08XXND100-DC
  • Average Power:100 W
  • Frequency Max:8.5 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):79.5*50.8*25.4
  • Description
    RFH08XXND100-DC from RF ONE is N type conduction cooled fixed attenuator operating DC to 8.5 GHz and rated for 100 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH08XXND100-DC, replace the XX with the desired attenuation value. Example: RFH0830ND100-DC for 30 dB.
