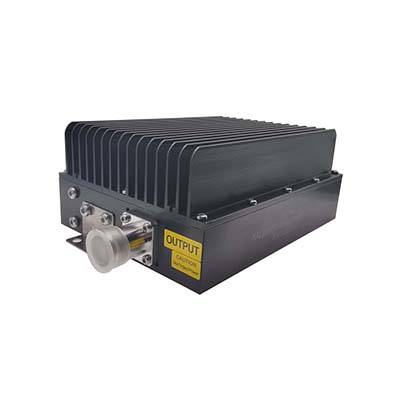

Generic photo used for illustration purposes only.
RALXX100NA-A is N low PIM attenuator with industry leading -160 dBc (min) & -165 dBc (typical) passive intermodulation and covers wide bandwidth from 555-6000 MHz. Power rated 100 watts, Unidirectional. They feature stable attenuation accuracy over high power input and temperature changes, well-suited for applications in wireless base station, in-building passive and active DAS systems etc. Available dB values from 6 dB to 30 dB.
For model RALXX100NA-A, replace the XX with the desired attenuation value. EXAMPLE: RAL30100NA-A for 30 dB.
