Hot
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
  • Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

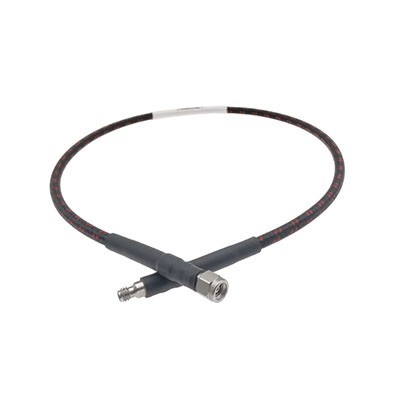

Generic photo used for illustration purposes only.

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

P/N:PL140
  • Frequency Max:110 GHz
  • Outer Diameter:1.4 mm
  • Static Bend Radius:8 mm
  • Loss at Max Freq:14.6 dB/m
  • Power at Max Freq:3 W
  • Phase Stability:≤±12°@ 110 GHz

    • Datasheet

    Add to RFQ
    Description
    • VSWR Max 1.45 up to 110GHz
    • Fast delivery with test plot to 110 GHz
    • Superior temperature phase stability 500PPM(-40～70℃)
    • Phase stability vs flex to 40GHz is ± 4°
    • Customized lengths available
    • Available in armor options
