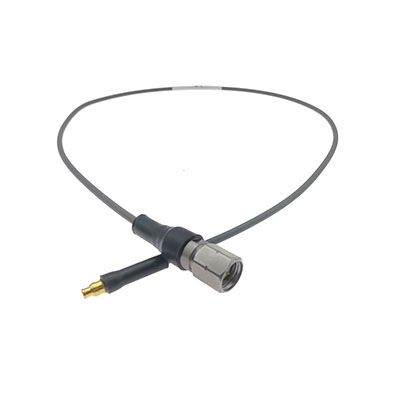

Generic photo used for illustration purposes only.
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
P/N:PL220
Frequency Max:
67 GHz
Outer Diameter:
2.2 mm
Static Bend Radius:
11 mm
Loss at Max Freq:
6 dB/m
Power at Max Freq:
29 W
Phase Stability:
≤±8°@ 67 GHz
Datasheet
Add to RFQ
Description
Excellent phase stability with flexure 67 GHz ≤8°
Temperature phase stability＜700ppm (-40℃ to +85℃)
Very low VSWR and loss to 67 GHz
Available in a wide choice of connectors
086 small size, highly flexible
