New

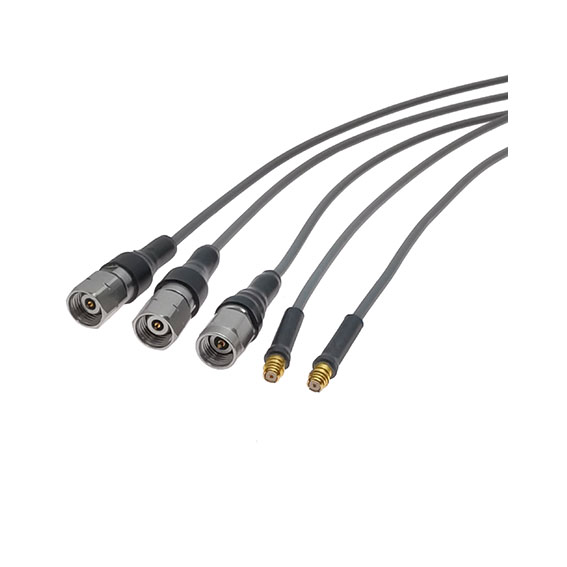

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
  • Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
Generic photo used for illustration purposes only.

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

P/N:PL220T
  • Frequency Max:40 GHz
  • Outer Diameter:2.2 mm
  • Static Bend Radius:11 mm
  • Loss at Max Freq:4.5 dB/m
  • Power at Max Freq:38 W
  • Phase Stability:≤±5°@ 40 GHz

    • Datasheet

    Add to RFQ
    Description
    • Excellent phase stability with flexure <±3o@18GHz
    • Temp phase stability typical 20 ppm (+20℃ to +22℃)
    • Innovative gradient-density dielectric processing, avoiding abrupt phase variation around room temp
    • 086 small size, highly flexible and low loss
    • Frequency DC?18 GHz /26.5 GHz /40 GHz options
    • Enhanced impedance consistency to ensure signal integrity and phase matching accuracy
    • Improved dielectric architecture, ensuring stable RF performance through temperature cycling
