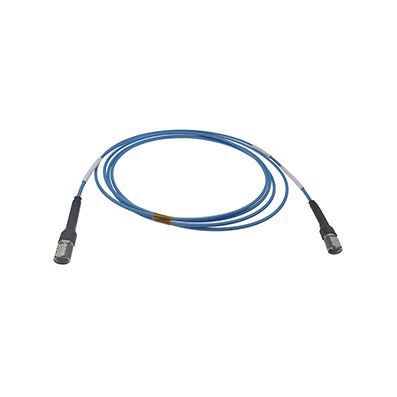

Generic photo used for illustration purposes only.

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

P/N:PL230P
  • Frequency Max:67 GHz
  • Outer Diameter:2.6 mm
  • Static Bend Radius:11 mm
  • Loss at Max Freq:6 dB/m
  • Power at Max Freq:29 W
  • Phase Stability:≤±7°@ 67 GHz
  • Description
    • Excellent phase stability with flexure 67 GHz ≤7°
    • Robust for test use with multi-layer protection
    • Very low VSWR and loss to 67 GHz
    • Available in armor options
    • Alternative to Gore CXN3506
