Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
  • Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

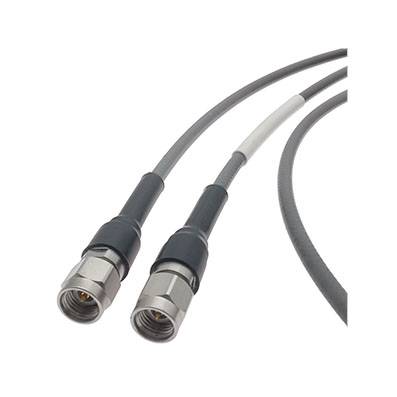

Generic photo used for illustration purposes only.

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable

P/N:PL360
  • Frequency Max:40 GHz
  • Outer Diameter:3.6 mm
  • Static Bend Radius:18 mm
  • Loss at Max Freq:2.6 dB/m
  • Power at Max Freq:75 W
  • Phase Stability:≤±6°@ 40 GHz

    • Datasheet

    Add to RFQ
    Description
    • Excellent phase stability with flexure 40 GHz ≤6°
    • Temperature phase stability＜680ppm (-40℃ to +85℃)
    • Lower loss than equivalent same-size cables
    • Wide choice of connectors
    • Available in armor options
    • Alternative to Gore CXN3507
