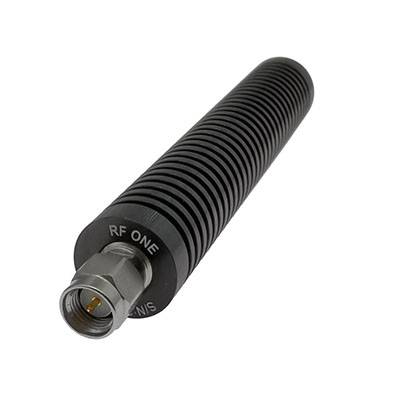

Generic photo used for illustration purposes only.

SMA Attenuator 12.4 GHz 20 Watts

P/N:RFH12XXSD20
  • Average Power:20 W
  • Frequency Max:12.4 GHz
  • Connector:SMA
  • VSWR Max:1.35
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):54(L)*15(φ)
  • Description
    RFH12XXSD20 from RF ONE is SMA coaxial fixed attenuator operating DC to 12.4 GHz and rated for 20 Watts, unidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFH12XXSD20, replace the XX with the desired attenuation value. Example: RFH1230SD20 for 30 dB.
