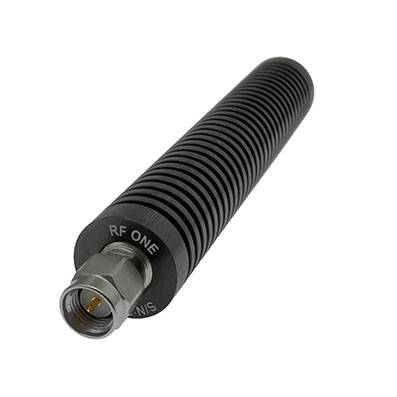

Generic photo used for illustration purposes only.

SMA Attenuator 12.4 GHz 30 Watts Unidirectional

P/N:RFH12XXSD30
  • Average Power:30 W
  • Frequency Max:12.4 GHz
  • Connector:SMA
  • VSWR Max:1.3
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):85.8(L)*15(φ)
  • Description
    RFH12XXSD30 from RF ONE is SMA coaxial fixed attenuator operating DC to 12.4 GHz and rated for 30 Watts, unidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFH12XXSD30, replace the XX with the desired attenuation value. Example: RFH1230SD30 for 30 dB.
