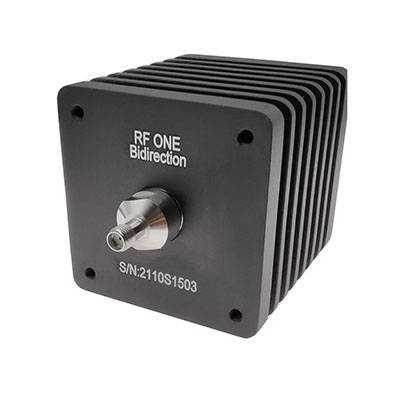

Generic photo used for illustration purposes only.

SMA Attenuator 12.4 GHz 50 Watts Bidirectional

P/N:RFHB12XXSC50-S
  • Average Power:50 W
  • Frequency Max:12.4 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:3-40 dB
  • Shape:Square
  • Direction:Bidirectional
  • Dimensions (mm):70*64*64
  • Description
    RFHB12XXSC50-S from RF ONE is SMA coaxial fixed attenuator operating DC to 12.4 GHz and rated for 50 Watts, bidirectional. Available from 3 to 40 dB. RoHS Compliant.

    For model RFHB12XXSC50-S, replace the XX with the desired attenuation value. Example: RFHB1230SC50-S for 30 dB.
