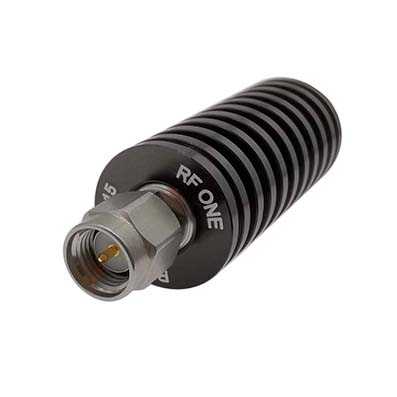

Generic photo used for illustration purposes only.

SMA Attenuator 18 GHz 15 Watts

P/N:RFHB18XXSC15
  • Average Power:15 W
  • Frequency Max:18 GHz
  • Connector:SMA
  • VSWR Max:1.45
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):34(L)*15.8(φ)
  • Description
    RFHB18XXSC15 from RF ONE is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 15 Watts, bidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFHB18XXSC15, replace the XX with the desired attenuation value. Example: RFHB1830SC15 for 30 dB.
