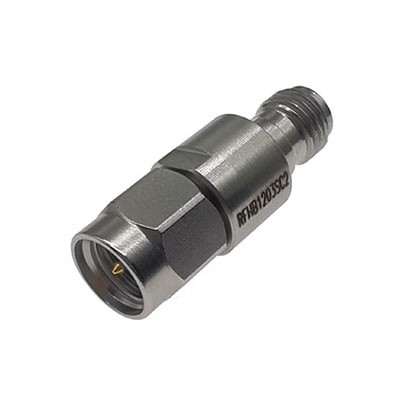

SMA Attenuator 18 GHz 2 Watts

P/N:RFHB18XXSC2
  • Average Power:2 W
  • Frequency Max:18 GHz
  • Connector:SMA
  • VSWR Max:1.3
  • Attenuations:0-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):24(L)*9(φ)
  • Description
    RFHB18XXSC2 from RF ONE is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 2 Watts, bidirectional. Available from 0 to 60 dB. RoHS Compliant.

    For model RFHB18XXSC2, replace the XX with the desired attenuation value. Example: RFHB1830SC2 for 30 dB.
