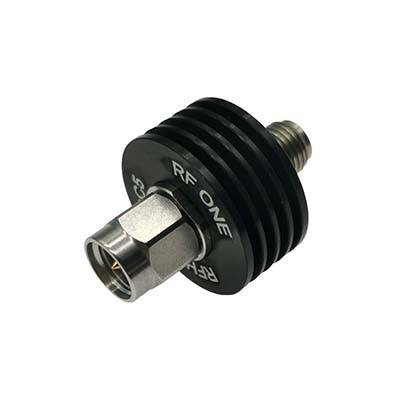

Generic photo used for illustration purposes only.

SMA Attenuator 27 GHz 5 Watts

P/N:RFHB27XXSC5
  • Average Power:5 W
  • Frequency Max:27 GHz
  • Connector:SMA
  • VSWR Max:1.3
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):9(L)*19(φ)
  • Description
    RFHB27XXSC5 from RF ONE is SMA coaxial fixed attenuator operating DC to 27 GHz and rated for 5 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB27XXSC5, replace the XX with the desired attenuation value. Example: RFHB2730SC5 for 30 dB.
