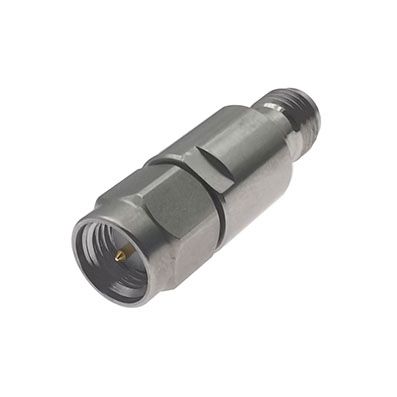

Generic photo used for illustration purposes only.

SMA Attenuator 6 GHz 2 Watts

P/N:RFHB06XXSC2A
  • Average Power:2 W
  • Frequency Max:6 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):27(L)*9(φ)
  • Description
    RFHB06XXSC2A from RF ONE is SMA coaxial fixed attenuator operating DC to 6 GHz and rated for 2 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB06XXSC2A, replace the XX with the desired attenuation value. Example: RFHB0630SC2A for 30 dB.
