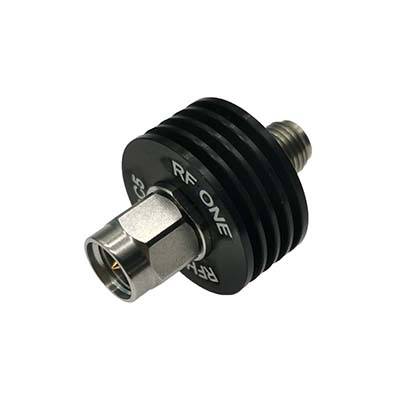

Generic photo used for illustration purposes only.

SMA Attenuator 6 GHz 5 Watts

P/N:RFHB06XXSC5
  • Average Power:5 W
  • Frequency Max:6 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:1-50 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):9(L)*19(φ)
  • Description
    RFHB06XXSC5 from RF ONE is SMA coaxial fixed attenuator operating DC to 6 GHz and rated for 5 Watts, bidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFHB06XXSC5, replace the XX with the desired attenuation value. Example: RFHB0630SC5 for 30 dB.
