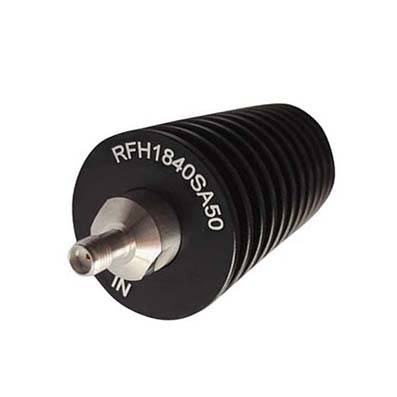

Generic photo used for illustration purposes only.

SMA Attenuator 6 GHz 50 Watts Unidirectional

P/N:RFH06XXSA50
  • Average Power:50 W
  • Frequency Max:6 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):70(L)*38(φ)
  • Description
    RFH06XXSA50 from RF ONE is SMA coaxial fixed attenuator operating DC to 6 GHz and rated for 50 Watts, unidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFH06XXSA50, replace the XX with the desired attenuation value. Example: RFH0630SA50 for 30 dB.
