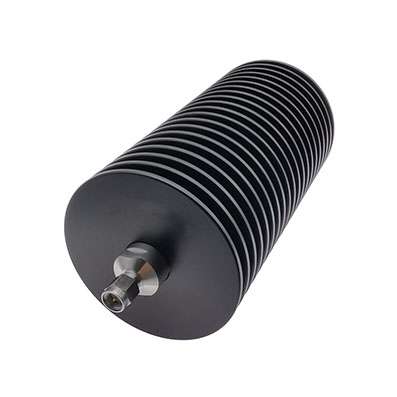

Generic photo used for illustration purposes only.

SMA Attenuator 6 GHz 75 Watts Bidirectional

P/N:RFHB06XXSC75
  • Average Power:75 W
  • Frequency Max:6 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:6-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):121(L)*64(φ)
  • Description
    RFHB06XXSC75 from RF ONE is SMA coaxial fixed attenuator operating DC to 6 GHz and rated for 75 Watts, bidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFHB06XXSC75, replace the XX with the desired attenuation value. Example: RFHB0630SC75 for 30 dB.
