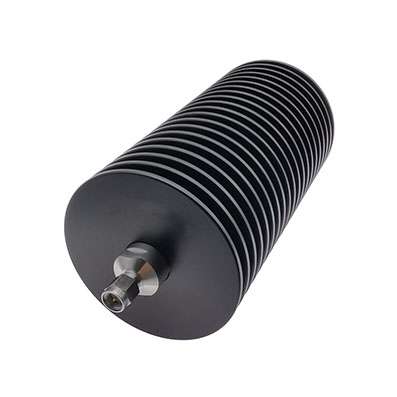

Generic photo used for illustration purposes only.

SMA Attenuator 8.5 GHz 100 Watts Unidirectional

P/N:RFH08XXSD100
  • Average Power:100 W
  • Frequency Max:8.5 GHz
  • Connector:SMA
  • VSWR Max:1.25
  • Attenuations:6-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):121(L)*64(φ)
  • Description
    RFH08XXSD100 from RF ONE is SMA coaxial fixed attenuator operating DC to 8.5 GHz and rated for 100 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH08XXSD100, replace the XX with the desired attenuation value. Example: RFH0830SD100 for 30 dB.
