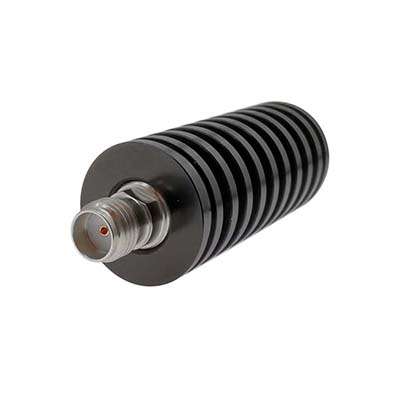

Generic photo used for illustration purposes only.
SMA Female Termination DC-12.4 GHz 10 Watts
P/N:RFT1210S1
RFT1210S1 from RF ONE is SMA female termination load operating DC to 12.4 GHz and rated for 10 watts. RoHS Compliant.
Average Power:
10 W
Frequency Max:
12.4 GHz
Connector:
SMA
Gender:
Female
VSWR Max:
1.25
Shape:
Round
Dimension (mm):
28(L)*15.8(φ)
Datasheet
Add to RFQ
