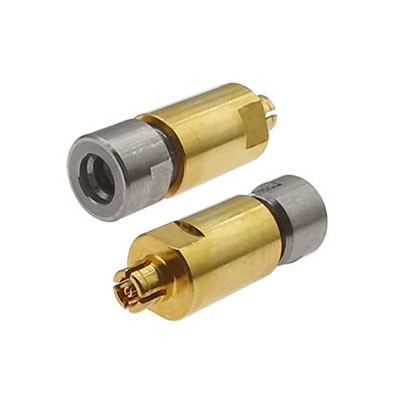

Generic photo used for illustration purposes only.

SMP Attenuator 18 GHz 2 Watts

P/N:RA18P-XX
  • Average Power:2 W
  • Frequency Max:18 GHz
  • Connector:SMP
  • VSWR Max:1.35
  • Attenuations:1-30 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):18.2(L)*6.4(φ)
  • Description
    RA18P-XX from RF ONE is SMP coaxial fixed attenuator operating DC to 18 GHz and rated for 2 Watts, bidirectional. Available from 1 to 30 dB. RoHS Compliant.

    For model RA18P-XX, replace the XX with the desired attenuation value. Example: RA18P-30 for 30 dB.
