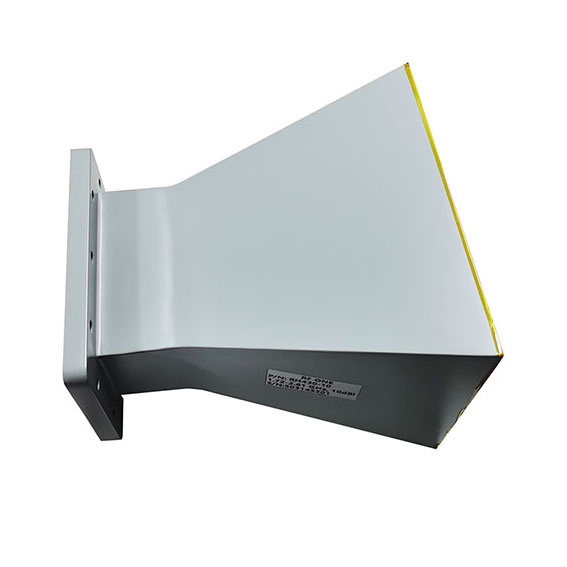

Generic photo used for illustration purposes only.

10 dBi Gain, 1.72-2.61 GHz, WR430 Standard Gain Horn with UDR22 Flange

P/N:RH430-10
  • Series:Waveguide Standard Gain Horn Antennas
  • Waveguide Size:WR430
  • Frequency Range:1.72-2.61 GHz
  • Gain:10 dBi
  • VSWR Max:1.2
  • Flange:UDR22
  • RF Port:Waveguide Flange
  • Description
    RH430-10 from RF ONE is a standard gain horn antenna that operates from 1.72-2.61 GHz with a nominal 10 dBi gain. The input of this antenna is a WR430 waveguide with UDR22 rectangular cover flange. RF ONE offers a complete line of high quality standard gain horn antennas covering the waveguide sizes WR10 to WR430, with the gain of 10 dBi, 15 dBi, 20 dBi and 25 dBi.
