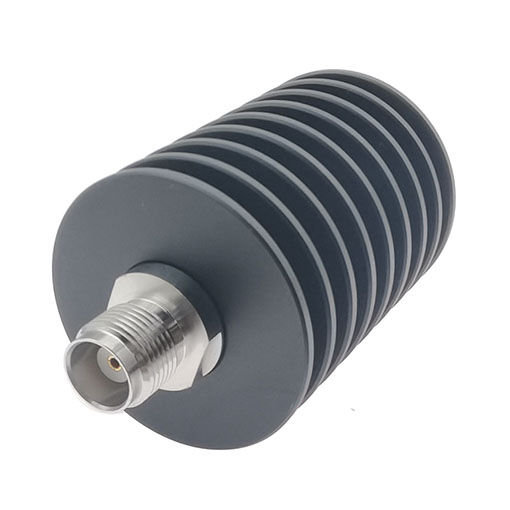

Generic photo used for illustration purposes only.

TNC Attenuator 12.4 GHz 20 Watts

P/N:RFHB12XXTC20
  • Average Power:20 W
  • Frequency Max:12.4 GHz
  • Connector:TNC
  • VSWR Max:1.35
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):50(L)*38(φ)
  • Description
    RFHB12XXTC20 from RF ONE is TNC coaxial fixed attenuator operating DC to 12.4 GHz and rated for 20 Watts, bidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFHB12XXTC20, replace the XX with the desired attenuation value. Example: RFHB1230TC20 for 30 dB.
