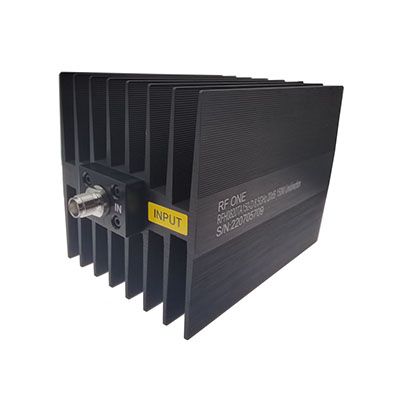

Generic photo used for illustration purposes only.

TNC Attenuator 4 GHz 150 Watts Unidirectional

P/N:RFH04XXTA150-D
  • Average Power:150 W
  • Frequency Max:4 GHz
  • Connector:TNC
  • VSWR Max:1.2
  • Attenuations:6-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):152*110*120
  • Description
    RFH04XXTA150-D from RF ONE is TNC coaxial fixed attenuator operating DC to 4 GHz and rated for 150 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH04XXTA150-D, replace the XX with the desired attenuation value. Example: RFH0430TA150-D for 30 dB.
