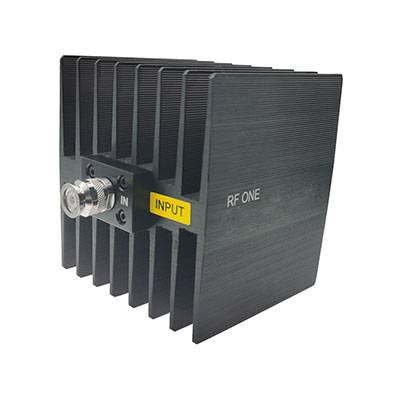

Generic photo used for illustration purposes only.

TNC Attenuator 8.5 GHz 50 Watts Unidirectional

P/N:RFH08XXTD50-D
  • Average Power:50 W
  • Frequency Max:8.5 GHz
  • Connector:TNC
  • VSWR Max:1.25
  • Attenuations:1-50 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):70*110*120
  • Description
    RFH08XXTD50-D from RF ONE is TNC coaxial fixed attenuator operating DC to 8.5 GHz and rated for 50 Watts, unidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFH08XXTD50-D, replace the XX with the desired attenuation value. Example: RFH0830TD50-D for 30 dB.
